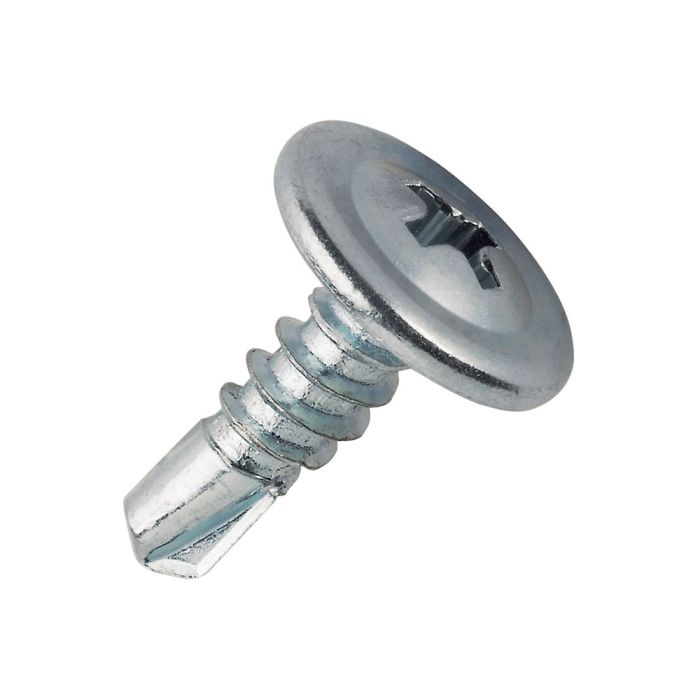

Wafer Head Self-Drilling Tek Screws (Zinc Plated)

Wafer Head Self-Drilling Tek Screws (Zinc Plated)

#8 / 1/2"
0.00 SR
Skip to product information
Wafer Head Self-Drilling Tek Screws (Zinc Plated)
  • Wafer Head Self-Drilling Tek Screws (Zinc Plated)
  • Wafer Head Self-Drilling Tek Screws (Zinc Plated)
Wafer Head Self-Drilling Tek Screws (Zinc Plated)

Wafer Head Self-Drilling Tek Screws (Zinc Plated)

0.00 SR
Diameter
Screw Length

Fasten wire lath, metal brackets, electrical boxes, and thin sheet metal directly to light and heavy-gauge steel studs with our Zinc-Plated Wafer Head Self-Drilling Screws (commonly known as K-Lath Screws or Modified Truss Head Tek Screws). Designed with an integrated drill-bit point, these heavy-duty fasteners drill their own pilot hole, cut matching threads, and clamp sheets tightly in one continuous operation—eliminating the need for pre-drilling or punch marking.

Featuring an extra-wide, low-profile wafer head with a flat underside, these screws act as an integrated washer to distribute clamping force over a larger surface area. This low-profile design prevents sheet metal pull-through, tearing, or crushing while keeping the screw head low enough to avoid interfering with drywall, stucco, or overlapping cladding panels installed on top.

Key Features

  • Extra-Wide Wafer Head: Integrated washer-style head increases bearing surface area to prevent pull-through when securing thin wire mesh, metal lath, and sheet metal.

  • Low-Profile Head Clearance: Ultra-flat head profile fits flush beneath drywall sheets, cement boards, and exterior cladding panels without creating unsightly bumps.

  • Self-Drilling Drill Point (Tek Point): Pierces directly through steel profiles and metal studs (up to 3.0 mm thick) without requiring pilot holes.

  • Deep PH2 Phillips Drive: Precision #2 Phillips cross recess ensures snug bit engagement, minimizing driver slippage, cam-out, and screw head stripping during high-speed installation.

  • Corrosion-Resistant Zinc Coating: Bright clear-zinc plating protects the hardened carbon steel core from rust, humidity, and atmospheric corrosion.

Product Specifications

Attribute Specification
Product Type Wafer Head / Modified Truss Head Self-Drilling Screws (K-Lath Screws)
Material Case-Hardened Carbon Steel (Grade C1022A)
Finish Bright Clear Zinc Plated
Head Style Wafer Head / Low-Profile Modified Truss Head
Drive Recess #2 Phillips (PH2) Cross Drive
Point Type Self-Drilling Point (No. 2 / No. 3 Drill Point)
Application Wire Mesh/Lath to Metal Studs, Electrical Box Mounting, HVAC Ductwork, & Sheet Metal Assembly

Standard Size Matrix & Technical Specifications

Gauge Size Metric Diameter Driver Bit Size Drilling Capacity (Steel Thickness) Available Lengths (Imperial / Metric)
#8 4.2 mm #2 Phillips (PH2) 0.8 mm – 2.5 mm 1/2" (13mm), 3/4" (19mm), 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (50mm)
#10 4.8 mm #2 Phillips (PH2) 1.0 mm – 3.2 mm 1/2" (13mm), 3/4" (19mm), 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (50mm)

Complete Metric Size Selection (Diameter × Length)

  • 4.2 mm Diameter (#8 Gauge):

    • 4.2 × 13 mm (#8 × 1/2")

    • 4.2 × 16 mm (#8 × 5/8")

    • 4.2 × 19 mm (#8 × 3/4")

    • 4.2 × 25 mm (#8 × 1")

    • 4.2 × 32 mm (#8 × 1-1/4")

    • 4.2 × 38 mm (#8 × 1-1/2")

    • 4.2 × 50 mm (#8 × 2")

  • 4.8 mm Diameter (#10 Gauge):

    • 4.8 × 13 mm (#10 × 1/2")

    • 4.8 × 19 mm (#10 × 3/4")

    • 4.8 × 25 mm (#10 × 1")

    • 4.8 × 32 mm (#10 × 1-1/4")

    • 4.8 × 38 mm (#10 × 1-1/2")

    • 4.8 × 50 mm (#10 × 2")
