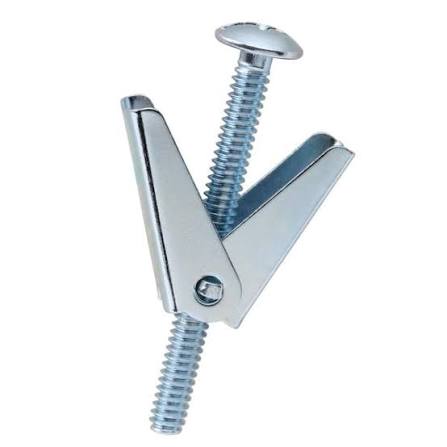

Spring Toggle Bolts Drywall Anchors
Spring Toggle Bolts Drywall Anchors
Secure medium-to-heavy fixtures, light fittings, ceiling fans, curtain tracks, and shelving onto hollow walls and false ceilings with our Zinc-Plated Spring Toggle Bolts (commonly known as Butterfly Anchors or Hollow Wall Toggle Anchors). Designed specifically for substrates with empty rear cavities—such as drywall (gypsum board), plasterboard, hollow blockwork, and acoustic ceiling tiles—these anchors distribute heavy loads over a wide surface area behind the wall.
Featuring a long, fully-threaded machine bolt paired with spring-actuated folding wings, installation is effortless: fold the spring wings flat to push through a pre-drilled hole; once past the substrate thickness, the wings snap open automatically behind the wall panel. Tightening the screw clamps the expanded wings firmly against the backside of the wall, creating a permanent, high-strength anchor point that resists pull-out forces.
Key Features
-
Spring-Loaded Automatic Expansion: Dual spring-tensioned wings fold flat for insertion and pop open instantly behind hollow walls for automatic rear anchoring.
-
Superior Weight Distribution: Spreads structural loads over a wide area on the inner wall surface, preventing drywall crumbling, tear-out, or pull-through.
-
Corrosion-Resistant Zinc Plating: Bright zinc-coated steel construction provides durable rust protection for interior wall and ceiling applications.
-
Flush Countersunk / Flat Head Drive: Sits flush against hardware brackets, lighting mounts, or wall fixtures for a clean, professional installation.
-
Ideal for Hollow Substrates: Purpose-built for drywall, gypsum board, hollow concrete blocks, suspended plaster ceilings, and cement fiberboard.
Product Specifications
| Attribute | Specification |
| Product Type | Spring Toggle Bolt / Butterfly Anchor / Hollow Wall Anchor |
| Material | Heavy-Duty Carbon Steel |
| Finish | Bright Clear Zinc Plated |
| Head Style | Countersunk Flat Head (or Pan Head Options) |
| Drive Recess | Combination Slotted / #2 Phillips (PH2) |
| Mechanism | Dual Spring-Loaded Folding Wings |
| Suitable Substrates | Gypsum Board (Drywall), Plasterboard, Hollow Concrete Blocks, & Suspended Ceilings |
| Primary Application | Hanging Ceiling Lights, Heavy Mirrors, Curtain Rails, Cabinets, TV Mounts, & HVAC Ducts |
Standard Size Matrix & Technical Specifications
| Thread Diameter (Metric / Imperial) | Bolt Length | Drill Hole Diameter Needed | Max Substrate Thickness Range | Recommended Max Load (Drywall 12.5mm) |
| M3 (1/8") | 50 mm / 75 mm | 10 mm – 11 mm | 10 mm – 40 mm | Up to 10 kg |
| M4 (3/16") | 50 mm / 75 mm / 100 mm | 12 mm – 14 mm | 12 mm – 65 mm | Up to 18 kg |
| M5 (3/16" Heavy) | 75 mm / 100 mm | 14 mm – 16 mm | 15 mm – 70 mm | Up to 25 kg |
| M6 (1/4") | 75 mm / 100 mm / 120 mm | 16 mm – 18 mm | 15 mm – 80 mm | Up to 35 kg |
| M8 (5/16") | 80 mm / 100 mm / 150 mm | 20 mm – 22 mm | 20 mm – 100 mm | Up to 50 kg |
