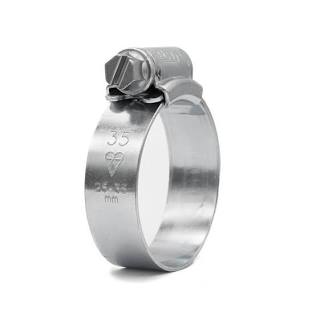

Heavy-Duty Stainless Steel Worm Gear Hose Clamps – Adjustable Pipe & Hose Jubilee Clip Fasteners (Multi-Size Selection)
Heavy-Duty Stainless Steel Worm Gear Hose Clamps – Adjustable Pipe & Hose Jubilee Clip Fasteners (Multi-Size Selection)
Secure flexible hoses, rubber pipes, plastic tubing, and ventilation ducts onto barbed fittings and nipples with our Premium Stainless Steel Worm Gear Hose Clamps. Engineered with a precision-threaded perforated band and a heavy-duty worm drive mechanism, these adjustable hose clamps deliver 360-degree uniform radial clamping pressure to prevent fluid, gas, and air leaks under pressure and vibration.
Featuring a slotted hex head screw, these clamps can be tightened or loosened easily using a flathead screwdriver, socket wrench, or hex nut driver. Built from corrosion-resistant stainless steel, they are essential fastening components for automotive plumbing, garden hose connections, agricultural irrigation, marine bilge pumps, home appliance connections, and industrial HVAC ductwork.
Key Features
-
Uniform 360° Radial Sealing: Perforated band threads engage smoothly with the worm drive screw, creating a tight, leak-proof seal around flexible hoses.
-
Corrosion-Resistant Stainless Steel: Resists rust, moisture, fuels, oils, and mild acids in automotive, marine, and outdoor environments.
-
Slotted Hex Drive Screw: Tightens easily using a standard 7mm/8mm socket, nut driver, or flathead screwdriver for flexible field installation.
-
Smooth Inner Band Edges: Smooth, burr-free band underside prevents slicing, gouging, or damaging soft rubber and silicone hoses during high-torque tightening.
-
Wide Adjustable Size Range: Continuous thread track allows wide clamping diameter adjustment to fit various hose outer diameters (OD).
Product Specifications
| Attribute | Specification |
| Product Type | Worm Gear Hose Clamps / Jubilee Clips |
| Band & Housing Material | 304 Stainless Steel / 201 Stainless Steel |
| Screw Material | Zinc-Plated Carbon Steel (W2) / 304 Stainless Steel (W4) |
| Band Width | 8 mm (Mini Clamps) / 12.7 mm (Standard Heavy-Duty) |
| Drive Mechanism | Slotted Hex Head Worm Gear Screw |
| Hex Screw Size | 7 mm / 8 mm Hex Driver Socket |
| Application | Automotive Cooling Systems, Fuel Lines, Garden Hoses, Agricultural Irrigation, HVAC Ducting, & Marine Plumbing |
Standard Size Matrix (Clamping Range)
Hose clamps are sized by the Minimum and Maximum Outer Diameter (OD) of the hose they can clamp:
| Size Code | Clamping Diameter Range (Metric) | Clamping Diameter Range (Imperial) | Band Width | Common Application |
| SAE 6 | 8 – 12 mm | 5/16" – 1/2" | 8 mm | Small fuel lines & vacuum hoses |
| SAE 8 | 10 – 16 mm | 3/8" – 5/8" | 8 mm / 12.7 mm | Small water pipes, heater hoses, & fuel lines |
| SAE 10 | 12 – 20 mm | 1/2" – 3/4" | 12.7 mm | Standard garden hoses & home plumbing |
| SAE 12 | 16 – 25 mm | 5/8" – 1" | 12.7 mm | 3/4" garden hoses & washing machine outlets |
| SAE 16 | 20 – 32 mm | 3/4" – 1-1/4" | 12.7 mm | Radiator hoses & 1" agricultural pipes |
| SAE 20 | 25 – 40 mm | 1" – 1-5/8" | 12.7 mm | Pool filtration lines & automotive intake hoses |
| SAE 24 | 32 – 50 mm | 1-1/4" – 2" | 12.7 mm | Pump discharge hoses & 1-1/2" PVC flexible lines |
| SAE 32 | 40 – 60 mm | 1-5/8" – 2-3/8" | 12.7 mm | 2" flexible pipe & automotive intercooler pipes |
| SAE 40 | 50 – 70 mm | 2" – 2-3/4" | 12.7 mm | 2-1/2" industrial hoses & drainage connections |
| SAE 48 | 60 – 80 mm | 2-3/8" – 3-1/8" | 12.7 mm | 3" flexible ducts & industrial suction hoses |
| SAE 56 | 70 – 90 mm | 2-3/4" – 3-1/2" | 12.7 mm | 3" - 3.5" HVAC flexible ducting |
| SAE 64 | 90 – 110 mm | 3-1/2" – 4-3/8" | 12.7 mm | 4" dryer vents, exhaust ducts, & water mains |
| SAE 80 | 110 – 130 mm | 4-3/8" – 5-1/8" | 12.7 mm | 5" ventilation pipes & heavy industrial ducts |
| SAE 96 | 140 – 160 mm | 5-1/2" – 6-1/4" | 12.7 mm | 6" HVAC ducting & blower fan connections |
