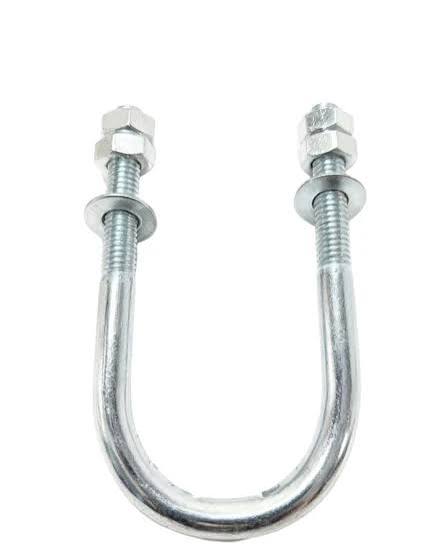

Heavy-Duty Zinc-Plated Steel Pipe U-Bolts – Round Bend Pipe & Conduit Support Clamps with Hex Nuts & Washers (Multi-Size Selection)
Heavy-Duty Zinc-Plated Steel Pipe U-Bolts – Round Bend Pipe & Conduit Support Clamps with Hex Nuts & Washers (Multi-Size Selection)
Firmly clamp and anchor rigid piping systems, steel conduits, PVC drainage pipes, and structural round tubing onto steel beams, mounting plates, and Unistrut channels with our Heavy-Duty Zinc-Plated Steel Pipe U-Bolts. Manufactured from high-tensile carbon steel formed into a precision round bend, each U-bolt comes pre-assembled as a complete fastening kit including two matching metric hex nuts and two heavy-duty flat washers.
Designed to securely wrap around standard Nominal Bore (NB) steel pipes, PPR lines, CPVC, UPVC, and EMT/RMC electrical conduits, these U-bolts prevent pipe displacement, lateral movement, and axial slippage under pressure surges and structural vibration. The heavy electro-zinc passivated coating guarantees exceptional protection against atmospheric rust, humidity, and chemical corrosion in plumbing, HVAC, electrical, and civil infrastructure applications.
Key Features
-
Complete Fastener Kit: Every U-bolt includes 2 precision-threaded hex nuts and 2 flat washers for instant, out-of-the-box field installation.
-
Precision Round Bend Profile: Engineered to match standard Nominal Pipe Sizes (NPS / DN) for uniform 360° clamping force without crushing or denting pipe walls.
-
Corrosion-Resistant Zinc Coating: Bright electro-galvanized finish shields carbon steel against oxidation, moisture, and indoor/outdoor environmental exposure.
-
High Load Capacity: Full-strength rolled metric threads provide deep thread engagement and high pull-out resistance under heavy structural loads.
-
Universal Mounting Compatibility: Mounts seamlessly onto steel channel struts, angle irons, I-beams, masonry wall brackets, and machinery frames.
Product Specifications
| Attribute | Specification |
| Product Type |
Round Bend Pipe Support U-Bolt Assembly |
| Dimensional Standard | DIN 3570 Form A / BS 3974 / ASME B18.31.5 |
| Material Grade |
High-Tensile Carbon Steel (Class 4.6 / Class 8.8) |
| Finish |
Bright Electro-Zinc Plated (Clear Cr3 Passivated) |
| Thread Style |
Metric Coarse Rolled Right-Hand Threads |
| Kit Components |
1 × U-Bolt, 2 × Full Hex Nuts, 2 × Flat Round Washers |
| Compatible Pipe Materials | Galvanized Steel, Black Steel, PPR, CPVC, UPVC, Copper, & EMT/RMC Conduit |
| Primary Application | Structural Pipe Clamping, Unistrut Channel Mounting, Overhead Pipe Suspension, HVAC Chiller Lines, & Marine Plumbing |
Standard Size Matrix & Technical Specifications
| Nominal Pipe Size (Inches / DN) | Pipe Outer Diameter (OD mm) | Thread Diameter (Metric) | Thread Length (mm) | Inside Width (Clamping Distance) | Overall Height |
| 1/2" (DN 15) | 21.3 mm | M6 | 30 mm | 22 mm | 55 mm |
| 3/4" (DN 20) | 26.9 mm | M6 / M8 | 30 mm | 28 mm | 60 mm |
| 1" (DN 25) | 33.7 mm | M8 | 35 mm | 35 mm | 70 mm |
| 1-1/4" (DN 32) | 42.4 mm | M8 | 35 mm | 44 mm | 80 mm |
| 1-1/2" (DN 40) | 48.3 mm | M8 / M10 | 40 mm | 50 mm | 90 mm |
| 2" (DN 50) | 60.3 mm | M10 | 40 mm | 62 mm | 105 mm |
| 2-1/2" (DN 65) | 76.1 mm | M10 | 45 mm | 78 mm | 125 mm |
| 3" (DN 80) | 88.9 mm | M10 / M12 | 50 mm | 91 mm | 140 mm |
| 4" (DN 100) | 114.3 mm | M12 | 50 mm | 116 mm | 170 mm |
| 5" (DN 125) | 139.7 mm | M12 | 60 mm | 142 mm | 200 mm |
| 6" (DN 150) | 168.3 mm | M12 / M16 | 60 mm | 171 mm | 230 mm |
